ZCCCT Tools Application in Wind Power Industry ——Main Shaft

Date:2020/04/10

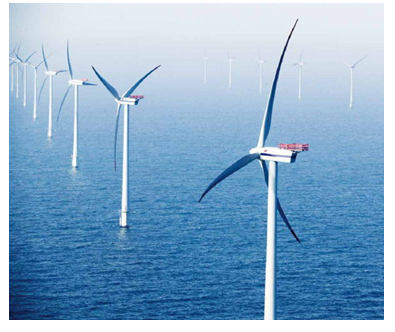

Windpower, as a new energy resource stored huge amount of energy, wind powerreserves is around 2.74×109MW in the world. Amount them, 2×107MW are availableto be harnessed. It is 10 times larger than total amount of applicable waterenergy on the earth. Wind power has caused more and more attention across theworld.

Mainshaft is a key component that connecting hub and gearbox, made of 34CrNiMo6、42CrMo4, etc. It is usedto transfer revolving torque of rotor blade to gearbox. Heave tight coupling ismost used device for connecting main shaft and gearbox, it guaranteesconcentric between main shaft and gearbox, also is able to avoid maintenance inoperation.




Twoside machining




Rough milling

Tool:FMP03-315-D60-LN25-12

Insert: LNKT2510-ZR/YBG302

Cutting data:Vc=120m/min,fz=0.5mm/z,ap=12mm,ae=250mm


Finish milling

Tool:FMA07-315-C60-ON08-16

Insert: ONHU08T508-PF/YBM253

ONHU08T508-W/YBM253

Cutting data:Vc=150m/min,fz=0.2mm/z,ap=2.5mm,ae=140mm


Shoulder milling



Rough milling

Tool:FMP03-315-D60-LN25-12

Insert: LNKT2510-ZR/YBG302

Cutting data:Vc=120m/min,fz=0.5mm/z,ap=12mm,ae=80mm


Finish milling

Tool:EMP02-125-B40-AP16-10

Insert: APKT160408-PF/YBC301

Cutting data:Vc=150m/min,fz=0.15mm/z,ap=2mm,ae=80mm



External turning


Tool:PZLNR5050T25

Insert: ZNUX40-TC/YBC252

Cutting data:Vc=120m/min,fr=0.5mm/r,ap=8mm



Arc machining


Insert: RCMX3209MO/YBC251

Cutting data:Vc=100m/min,fr=0.5mm/r,ap=8mm


Grooving


Tool:QEKD3232R22-6N

Insert: ZRKD06-MG/YBG302

Cutting data:Vc=150m/min,fr=0.15mm/r,ap=6mm


Big face hole-making



Tool:ZTD04-450-XP40-SP14-02

Insert: SPGT140512-PM/YBG212(内)/YBG205(外)

Cutting data:Vc=120m/min,fr=0.12mm/r,


Smallface hole-making



Drilling

Tool:1736SU05C-1750

Cutting data:Vc=60m/min,fr=0.16mm/r,



Threading

Tool:4111-M20

Cutting data:Vc=60m/min,fr=0.08mm/r
